The PMDX-133 is a legacy product that is no longer in production and no stock is available. Repairs are still offered and rebuilt units may be offered to existing customers needing to support old machines. The PMDX-134 is still available and is a suitable replacement for the PMDX-133 to support 2 or 3 Gecko drivers when there is room for the longer PMDX-134 board. A PMDX-134 cannot be used to replace a PMDX-133 when implementing 5 or 6 motor systems.

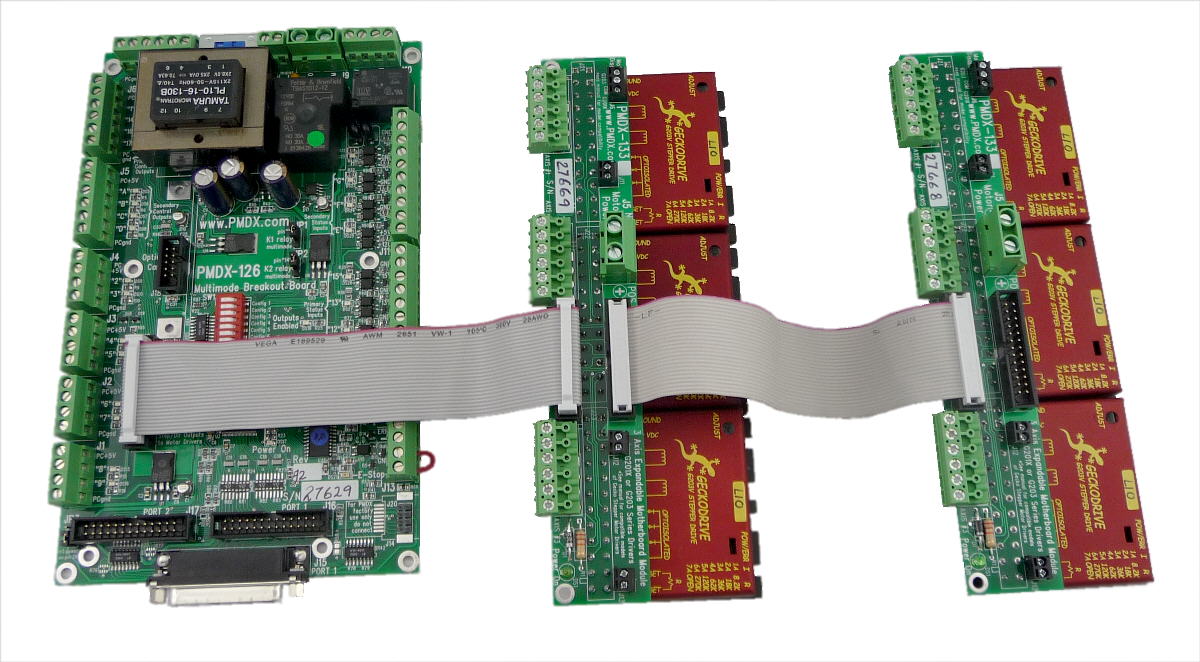

Top image shows a complete 6 axis setup containing two PMDX-133 boards set up with typical installation using a PMDX-126, ribbon cables, and 6 Gecko G203V drivers.

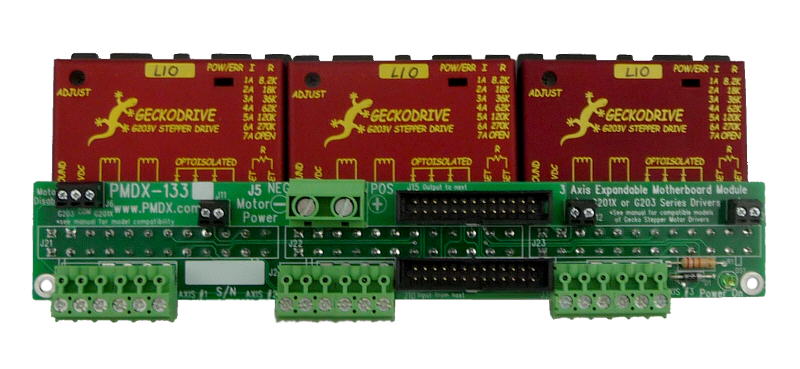

This image is a top view showing Geckodrive G203V drivers installed under a PMDX-133.

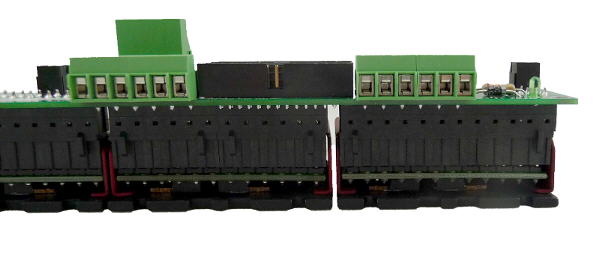

This image is an edge view showing Geckodrive G203V drivers installed under a PMDX-133.

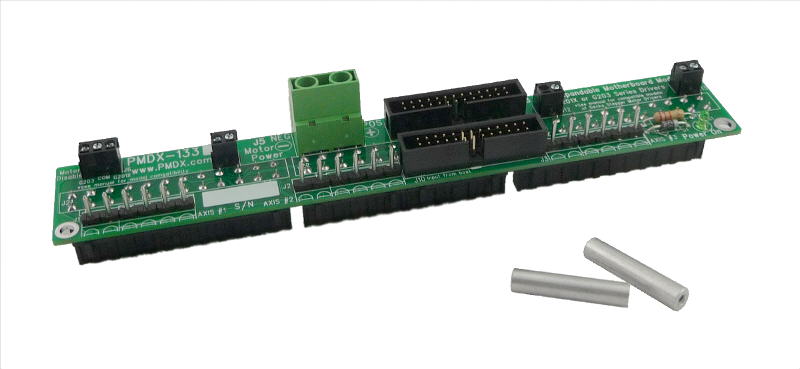

The PMDX-133 is a mother board for interfacing Gecko stepper drivers with CNC controls.

** Geckodrive, Inc. the maker of the Gecko stepper motor drives is a separate company from PMDX and is not responsible for the statements made on this web site or in other PMDX documents.

Note: The step and direction signals used to run this board as a real time CNC device require precise timing. These signals are normally provided by a personal computer motherboard with an onboard parallel port, a parallel port interface card plugged into a motherboard with ISA, PCI, or PCI-Express slots, or by an external device such as the PMDX-410, PMDX-411 or PMDX-422 with Mach4, or the SmoothStepper. You cannot use a USB to printer adapter because it will alter critical timing of CNC control signals. Laptop computers, even those with parallel port interfaces, are not recommended as CNC control computers due to design features that can alter critical timing. If you must use a laptop be prepared to deal with these design issues and/or plan on using an external pulse generating device such as the PMDX-410, PMDX-411 or PMDX-422 with Mach4, or a SmoothStepper.
