Model PMDX-414

SmartBOB-MiniUSB    $139.00
(for use with Mach4)

click HERE to compare SmartBOB models



PMDX-414-board_400

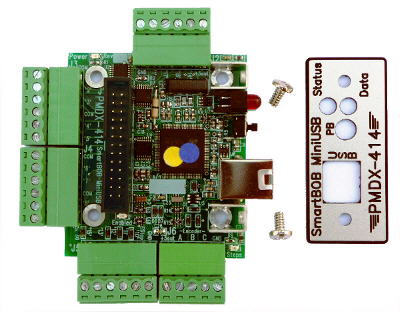

PMDX-414 SmartBOB-MiniUSB board alone
Click on image for a larger view



PMDX-412 with panel installed

PMDX-414 SmartBOB-MiniUSB rough cutout for panel

PMDX-414

PMDX-414  SmartBOB-MiniUSB as delivered
Click on image for a larger view

PMDX-412 with panel installed

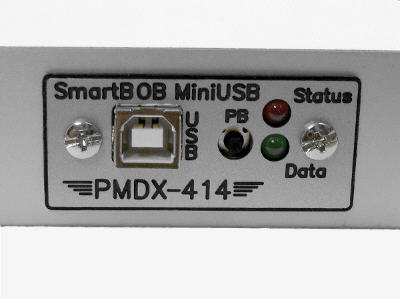

PMDX-414 SmartBOB-MiniUSB dress plate over cutout

The PMDX-414 is a Mach4 compatible, USB connected motion control pulse engine/breakout board
for running simple machines that do not need isolation. It combines the features of the older
PMDX-410 and PMDX-412 boards, and it replaces both of them.





Purchase as a bundle with a Mach4Hobby
license and save an additional $5 on
our already discounted price for Mach4.



Mach4 logo



Features of the PMDX-414

1) A single board implementing both the breakout board function AND the motion controller function saves cost and makes installation simpler. Use of option jumpers has been eliminated by controlling features via software.

2) The motion control pulse engine generates pulses independent of the host computer timing and provides real time control for smooth step pulse signals up to 100 KHz on 4 axes.

3) Simple USB connection to the host computer supports both CNC operation and firmware updates.

4) Power is supplied via the USB connection. Power from the USB port is made available on J2 to power light loads such as sensors or the PMDX-104 relay board.

5) The machine interface provides equivalent signals to one parallel port including 8 step and direction signals, 8 input signals including one dedicated to emergency stop, and 4 output signals.

6) The machine interface is available as both pluggable screw terminal connectors and as a 26 pin ribbon header. It is possible to use the terminal strips for limit and home switches while using the ribbon header to connect to a stepper driver or motherboard such as the PMDX-134 and a spindle controller such as the PMDX-407.

7) The five (5) main input signals have a pull-up resistor to allow use with simple mechanical switches or three-wire NPN proximity switches. These signals are filtered to reduce noise sensitivity. The inputs will also accept 5 volt logic signals. The use of PNP proximity switches will require external adaptation using a PMDX-105 or similar. All inputs are protected against voltages up to 30 volts above ground.

8) Three (3) additional non-isolated inputs are available for use as general purpose inputs as above but with less filtering for faster response, or as an encoder with index. These inputs can support a general purpose MPG, spindle index for RPM sensing and single pulse per revolution lathe threading, or full multi-line encoder support for threading.

9) The step and direction outputs are 5 volt logic signals with up to 24 mA of drive current available. The "common" connection for the step and direction outputs is selectable via the Mach4 plug-in setup to be either Ground or +5 volts.

10) The 4 logic level outputs are 5 volt signals with up to 24 mA of drive current available. These signals can be used to drive solid state relays or the PMDX-104 light duty 4 channel relay board.

11) All outputs are turned off in the event of loss of communication from the host, or if the emergency stop input is activated.

12) The emergency stop input can act as a normally closed circuit for failsafe operation. A break in the circuit will signal an emergency stop.

13) An LED is provided for "Enabled" to indicate that the unit is ready to run the machine and as an aid in troubleshooting. There is also a "Steps" LED to indicate that motion is in process. The Mach4 plugin also provides a "real time signal" display that shows all signals.

14) The board can be mounted against a panel with holes to allow access to the USB jack, pushbutton, and status LEDs. Right angle brackets are provided to support the board directly from the panel. A small overlay panel is provided so that only a rectangular hole and 4 screw holes are need for mounting to a panel. The board also has 4 holes for mounting using conventional standoffs.

15) Externally visible LEDs show status of host connection and the SmartBOB-USB board.

16) An externally accessible pushbutton is provided for firmware setup and test.

17) The PMDX-414 is a compact 2.5" by 2.2" board that fits in tight spaces. It can be self-supported when attached to a panel, or it can be mounted to an internal plate using standoffs. A dress plate is provided with each unit for use when attached directly to a panel.



PLEASE NOTE: The available step and direction signal pinouts work with most common breakout boards and with the PMDX-134, the PMDX-340 and Geckodrive G540, but they are not totally assignable at random. If you plan to use the ribbon header for step and direction outputs, please verify that your device is compatible before purchasing. Available configurations are Step on pins 2, 4, 6, 8 and Direction on pins 3, 5, 7, 9 <<OR>> Step on pins 3, 5, 7, 9 and Direction on pins 2, 4, 6, 8.

Download the User's Manual in PDF format here
(revision 1.0, 27 April 2017, 166 KB)

Download Plug-In Setup files here

Instructions for getting Mach4 and your License File (bundle purchase only)

The PMDX-414 is priced at $139.00

Temporarily out of stock.



Cables are sold separately, please click here to order the ones that you need.

Use PayPal shopping cart for USA delivery only.
Click here for international orders.



For International customers or for alternate payment options - click HERE
