Model PMDX-ESTOP-STD



PMDX-EStop-Std Emergency Stop Switch

Standard Emergency Stop Switch
Overall view

PMDX-EStop-Std Emergency Stop Switch

Standard Emergency Stop Switch
Parts view

The PMDX-EStop-Std is a standard sized emergency stop switch

  • High quality materials and construction for smoother operation and dependable latching
  • Button latches when pressed, twist to release
  • Button is 40 millimeter in diameter
  • Fits a 22 millimeter round panel hole
  • Works in panels up to 4mm thick
  • Needs 48mm depth behind panel
  • Button body detaches from switch module for easier assembly through panel
  • Provides two normally-closed switches, use one for safety relays and one for control signal
  • Rated for 10 amperes @ 110 VAC and 5 amperes @ 220 VAC
  • Switch contacts are "double break" for failsafe operation
  • Screw terminal connections for wire attachment

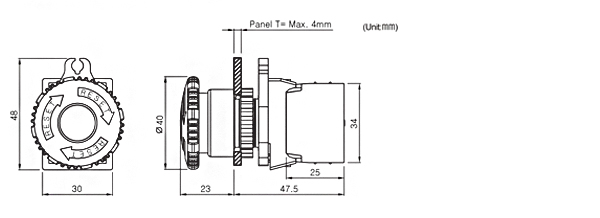

PMDX-EStop-Std Emergency Stop Switch Dimensions

The PMDX-EStop-Std is priced at $19.00
